Definition in file wireless_uart_extended.c.
#include <stdint.h>
#include <stdbool.h>
#include "config_uart_extended.h"
#include "compiler.h"
#include "at86rf230_registermap.h"
#include "hal.h"
#include "tat.h"
#include "com.h"

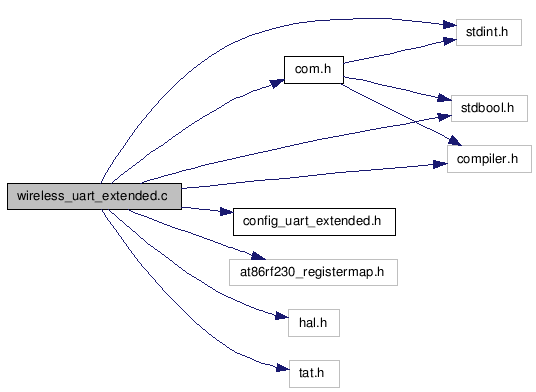

Include dependency graph for wireless_uart_extended.c:
Go to the source code of this file.
Functions | |
| static void | avr_init (void) |
| This function configure the necessary IO modules on the AVR. | |
| void | main (void) |
| static void | rx_pool_init (void) |
| This function initialize the rx_pool. The rx_pool is in essence a FIFO. | |
| static void | trx_end_handler (uint32_t time_stamp) |
| This function is the TRX_END event handler that is called from the TRX isr if assigned. | |
| static bool | trx_init (void) |
| This function is used to initialize the TRX. | |
Variables | |
| static uint8_t | debug_data_received [] = "\r--->Rx:\r" |
| Debug Text. | |
| static uint8_t | debug_data_sent [] = "<---TX OK.\r\n" |
| Debug Text. | |
| static uint8_t | debug_fatal_error [] = "A fatal error. System must be reset.\r\n" |
| Debug Text. | |
| static uint8_t | debug_lqi [] = "LQI: " |
| Debug Text. | |
| static uint8_t | debug_pll_transition [] = "State transition failed\r\n" |
| Debug Text. | |
| static uint8_t | debug_rx_pool_overflow [] = "RX Buffer Overflow!\r\n" |
| Debug Text. | |
| static uint8_t | debug_transmission_failed [] = "TX Failed!\r\n" |
| Debug Text. | |
| static uint8_t | debug_transmission_length [] = "Typed Message too long!!\r\n" |
| Debug Text. | |
| static uint8_t | debug_type_message [] = "\r<---Type Message:\r\n" |
| Debug Text. | |
| static bool | rx_flag |
| Flag used to mask between the two possible TRX_END events. | |
| static hal_rx_frame_t | rx_pool [RX_POOL_SIZE] |
| Pool of hal_rx_frame_t's. | |
| static hal_rx_frame_t * | rx_pool_end |
| Pointer to end of pool. | |
| static hal_rx_frame_t * | rx_pool_head |
| Pointer to next hal_rx_frame_t it is possible to write. | |
| static uint8_t | rx_pool_items_free |
| Number of free items (hal_rx_frame_t) in the pool. | |
| static uint8_t | rx_pool_items_used |
| static bool | rx_pool_overflow_flag |
| Flag that is used to signal a pool overflow. | |
| static hal_rx_frame_t * | rx_pool_start |
| Pointer to start of pool. | |
| static hal_rx_frame_t * | rx_pool_tail |
| Pointer to next hal_rx_frame_t that can be read from the pool. | |
| static uint8_t | tx_frame [127] |
| Buffer used to build TX frames. (Size must be max PSDU length.). | |
| static void avr_init | ( | void | ) | [static] |
This function configure the necessary IO modules on the AVR.
Definition at line 141 of file wireless_uart_extended.c.
References BR_38400, and com_init().

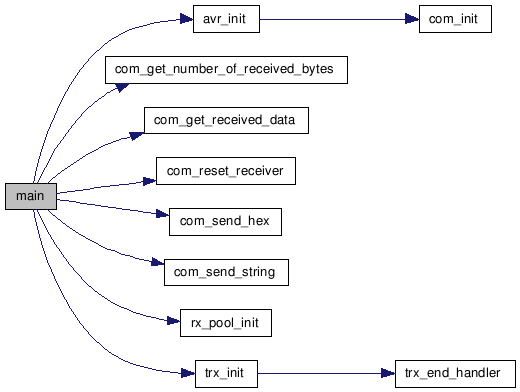

Here is the call graph for this function:
| void main | ( | void | ) |
Definition at line 195 of file wireless_uart_extended.c.
References avr_init(), com_get_number_of_received_bytes(), com_get_received_data(), com_reset_receiver(), COM_RX_BUFFER_SIZE, com_send_hex(), com_send_string(), debug_data_received, debug_data_sent, debug_fatal_error, debug_lqi, debug_pll_transition, debug_rx_pool_overflow, debug_transmission_failed, debug_transmission_length, debug_type_message, DEST_ADDRESS, PAN_ID, rx_flag, rx_pool_end, rx_pool_init(), rx_pool_items_free, rx_pool_items_used, rx_pool_overflow_flag, rx_pool_start, rx_pool_tail, SHORT_ADDRESS, trx_init(), and tx_frame.
00195 { 00196 00197 static uint8_t length_of_received_data = 0; 00198 static uint8_t frame_sequence_number = 0; 00199 rx_flag = true; 00200 00201 /*Pre Build Header of IEEE 802.15.4 Data frame.*/ 00202 tx_frame[ 0 ] = 0x61; //FCF. 00203 tx_frame[ 1 ] = 0x88; //FCF. 00204 //Sequence number set during frame transmission. 00205 tx_frame[ 3 ] = PAN_ID & 0xFF; //Dest. PANID. 00206 tx_frame[ 4 ] = (PAN_ID >> 8 ) & 0xFF; //Dest. PANID. 00207 tx_frame[ 5 ] = DEST_ADDRESS & 0xFF; //Dest. Addr. 00208 tx_frame[ 6 ] = (DEST_ADDRESS >> 8 ) & 0xFF; //Dest. Addr. 00209 tx_frame[ 7 ] = SHORT_ADDRESS & 0xFF; //Source Addr. 00210 tx_frame[ 8 ] = (SHORT_ADDRESS >> 8 ) & 0xFF; //Source Addr. 00211 00212 rx_pool_init( ); 00213 avr_init( ); 00214 trx_init( ); 00215 00216 //Set system state to RX_AACK_ON 00217 if (tat_set_trx_state( RX_AACK_ON ) != TAT_SUCCESS) { 00218 com_send_string( debug_fatal_error, sizeof( debug_fatal_error ) ); 00219 } // end: if (tat_set_trx_state( RX_AACK_ON ) != TAT_SUCCESS) ... 00220 00221 sei( ); 00222 00223 //Give the user an indication that the system is ready. 00224 com_send_string( debug_type_message, sizeof( debug_type_message ) ); 00225 00226 /*Enter Normal Program Flow: 00227 - Check for newly received frames. Print them if something is received. 00228 - Notify on rx_pool overflow. 00229 - Try to send data on air interface, if something is received on UART/USB. 00230 - Notify if the typed message was too long. 00231 */ 00232 while (true) { 00233 00234 //Check if we have received something on the air interface. 00235 if (rx_pool_items_used != 0) { 00236 00237 //Handle wrapping of rx_pool. 00238 if (rx_pool_tail == rx_pool_end) { 00239 rx_pool_tail = rx_pool_start; 00240 } else { 00241 ++rx_pool_tail; 00242 } // end: if (rx_pool_tail == rx_pool_end) ... 00243 00244 //Turn interrupts off for a short while to protect when status 00245 //information about the rx_pool is updated. 00246 cli( ); 00247 00248 ++rx_pool_items_free; 00249 --rx_pool_items_used; 00250 00251 sei( ); 00252 00253 //Send the frame to the user: 00254 com_send_string( debug_data_received, sizeof( debug_data_received ) ); 00255 com_send_string( &(rx_pool_tail->data[ 9 ]), ((rx_pool_tail->length) - 9 - 2 ) ); 00256 com_send_string( debug_lqi, sizeof( debug_lqi ) ); 00257 com_send_hex( rx_pool_tail->lqi ); 00258 com_send_string( debug_type_message, sizeof( debug_type_message ) ); 00259 } // end: if (rx_pool_items_used != 0) ... 00260 00261 //Check for rx_pool overflow. 00262 if (rx_pool_overflow_flag == true) { 00263 00264 cli(); 00265 rx_pool_init( ); 00266 com_send_string( debug_rx_pool_overflow, sizeof( debug_rx_pool_overflow ) ); 00267 sei(); 00268 } // end: if (rx_pool_overflow_flag == true) ... 00269 00270 //Check for new data on the serial interface. 00271 //Check if data is ready to be sent. 00272 length_of_received_data = com_get_number_of_received_bytes( ); 00273 00274 if (length_of_received_data == 1) { 00275 00276 //length_of_received_data == 1 indicates a buffer overflow. Received data too long. 00277 com_send_string( debug_transmission_length, sizeof( debug_transmission_length ) ); 00278 com_reset_receiver( ); 00279 } else { 00280 00281 if ((length_of_received_data >= 3) && (length_of_received_data <= COM_RX_BUFFER_SIZE)) { 00282 00283 //Change state to TX_ARET_ON and send data if the state transition was successful. 00284 if (tat_set_trx_state( TX_ARET_ON ) == TAT_SUCCESS) { 00285 00286 uint8_t *rx_frame = com_get_received_data( ); 00287 00288 uint8_t tx_frame_length = 9; // Length of prebuilt frame header. 00289 tx_frame[ 2 ] = frame_sequence_number++; //Sequence Number. 00290 00291 //Copy data into the TX frame buffer. 00292 do { 00293 tx_frame[ tx_frame_length++ ] = *rx_frame++; 00294 } while (--length_of_received_data > 0); 00295 00296 rx_flag = false; // Set the flag false, so that the TRX_END event is not misinterpreted. 00297 00298 if (tat_send_data_with_retry( tx_frame_length, tx_frame, 1 ) == TAT_SUCCESS) { 00299 com_send_string( debug_data_sent, sizeof( debug_data_sent ) ); 00300 } else { 00301 com_send_string( debug_transmission_failed, sizeof( debug_transmission_failed ) ); 00302 } // end: if (tat_send_data_with_retry( tx_frame_length, tx_frame, 1 ) ... 00303 } else { 00304 com_send_string( debug_pll_transition, sizeof( debug_pll_transition ) ); 00305 } // end: if (tat_set_trx_state( TX_ARET_ON ) == TAT_SUCCESS) ... 00306 00307 if (tat_set_trx_state( RX_AACK_ON ) != TAT_SUCCESS) { 00308 com_send_string( debug_fatal_error, sizeof( debug_fatal_error ) ); 00309 } // end: if (tat_set_trx_state( RX_AACK_ON ) != TAT_SUCCESS) ... 00310 00311 rx_flag = true; // Set the flag back again. Only used to protec the frame transmission. 00312 com_reset_receiver( ); 00313 com_send_string( debug_type_message, sizeof( debug_type_message ) ); 00314 } // end: 00315 } // end: if (length_of_received_data == 1) ... 00316 } // emd: while (true) ... 00317 }
Here is the call graph for this function:
| static void rx_pool_init | ( | void | ) | [static] |
This function initialize the rx_pool. The rx_pool is in essence a FIFO.
Definition at line 147 of file wireless_uart_extended.c.
References rx_pool, rx_pool_end, rx_pool_head, rx_pool_items_free, rx_pool_items_used, rx_pool_overflow_flag, RX_POOL_SIZE, rx_pool_start, and rx_pool_tail.
00147 { 00148 00149 rx_pool_start = rx_pool; 00150 rx_pool_end = &rx_pool[ RX_POOL_SIZE - 1 ]; 00151 00152 rx_pool_head = rx_pool_start; 00153 rx_pool_tail = rx_pool_end; 00154 00155 rx_pool_items_free = RX_POOL_SIZE; 00156 rx_pool_items_used = 0; 00157 00158 rx_pool_overflow_flag = false; 00159 }
| static void trx_end_handler | ( | uint32_t | time_stamp | ) | [static] |
This function is the TRX_END event handler that is called from the TRX isr if assigned.
| [in] | time_stamp | Interrupt timestamp in IEEE 802.15.4 symbols. |
Definition at line 166 of file wireless_uart_extended.c.
References rx_flag, rx_pool_end, rx_pool_head, rx_pool_items_free, rx_pool_items_used, rx_pool_overflow_flag, and rx_pool_start.
00166 { 00167 00168 if (rx_flag == true) { 00169 00170 //Check if these is space left in the rx_pool. 00171 if (rx_pool_items_free == 0) { 00172 rx_pool_overflow_flag = true; 00173 } else { 00174 00175 //Space left, so upload the received frame. 00176 hal_frame_read( rx_pool_head ); 00177 00178 //Then check the CRC. Will not store frames with invalid CRC. 00179 if (rx_pool_head->crc == true) { 00180 00181 //Handle wrapping of rx_pool. 00182 if (rx_pool_head == rx_pool_end) { 00183 rx_pool_head = rx_pool_start; 00184 } else { 00185 ++rx_pool_head; 00186 } // end: if (rx_pool_head == rx_pool_end) ... 00187 00188 --rx_pool_items_free; 00189 ++rx_pool_items_used; 00190 } // end: if (rx_pool_head->crc == true) ... 00191 } // end: if (rx_pool_items_free == 0) ... 00192 } // end: if (rx_flag == true) ... 00193 }
| static bool trx_init | ( | void | ) | [static] |
This function is used to initialize the TRX.
The TAT will be set up to run on the chosen operating channel, with CLKM diabled, and then configure the RX_AACK and TX_ARET modes.
| true | if the TRX was successfully configured. | |
| false | if the TRX was not configured properly. |
Definition at line 108 of file wireless_uart_extended.c.
References OPERATING_CHANNEL, PAN_ID, SHORT_ADDRESS, and trx_end_handler().
00108 { 00109 00110 static bool status; 00111 00112 if (tat_init( ) != TAT_SUCCESS) { 00113 status = false; 00114 } else if (tat_set_operating_channel( OPERATING_CHANNEL ) != TAT_SUCCESS) { 00115 status = false; 00116 } else if (tat_set_clock_speed( true, CLKM_DISABLED ) != TAT_SUCCESS) { 00117 status = false; 00118 } else{ 00119 00120 /*Set up the extended modes:*/ 00121 //RX_AACK: 00122 tat_set_short_address( SHORT_ADDRESS ); //Short Address. 00123 tat_set_pan_id( PAN_ID ); //PAN ID. 00124 tat_set_device_role( false ); // No Coordintor support is necessary. 00125 00126 //TX_ARET: 00127 tat_configure_csma( 234, 0xE2 ); // Default CSMA_SEED_0, MIN_BE = 3, MAX_CSMA_RETRIES = , and CSMA_SEED_1 = 00128 00129 //Both Modes: 00130 tat_use_auto_tx_crc( true ); //Automatic CRC must be enabled. 00131 hal_set_trx_end_event_handler( trx_end_handler ); // Event handler for TRX_END events. 00132 00133 status = true; 00134 } // end: if (tat_init( ) != TAT_SUCCESS) ... 00135 00136 return status; 00137 }
Here is the call graph for this function:
uint8_t debug_data_received[] = "\r--->Rx:\r" [static] |
uint8_t debug_data_sent[] = "<---TX OK.\r\n" [static] |
uint8_t debug_fatal_error[] = "A fatal error. System must be reset.\r\n" [static] |
uint8_t debug_lqi[] = "LQI: " [static] |
uint8_t debug_pll_transition[] = "State transition failed\r\n" [static] |
uint8_t debug_rx_pool_overflow[] = "RX Buffer Overflow!\r\n" [static] |
uint8_t debug_transmission_failed[] = "TX Failed!\r\n" [static] |
uint8_t debug_transmission_length[] = "Typed Message too long!!\r\n" [static] |
uint8_t debug_type_message[] = "\r<---Type Message:\r\n" [static] |
bool rx_flag [static] |
Flag used to mask between the two possible TRX_END events.
Definition at line 83 of file wireless_uart_extended.c.
hal_rx_frame_t rx_pool[RX_POOL_SIZE] [static] |
hal_rx_frame_t* rx_pool_end [static] |
hal_rx_frame_t* rx_pool_head [static] |
Pointer to next hal_rx_frame_t it is possible to write.
Definition at line 77 of file wireless_uart_extended.c.
uint8_t rx_pool_items_free [static] |
Number of free items (hal_rx_frame_t) in the pool.
Definition at line 79 of file wireless_uart_extended.c.
uint8_t rx_pool_items_used [static] |
Definition at line 80 of file wireless_uart_extended.c.
bool rx_pool_overflow_flag [static] |
Flag that is used to signal a pool overflow.
Definition at line 81 of file wireless_uart_extended.c.
hal_rx_frame_t* rx_pool_start [static] |
hal_rx_frame_t* rx_pool_tail [static] |
Pointer to next hal_rx_frame_t that can be read from the pool.
Definition at line 78 of file wireless_uart_extended.c.
uint8_t tx_frame[127] [static] |
Buffer used to build TX frames. (Size must be max PSDU length.).
Definition at line 72 of file wireless_uart_extended.c.
Referenced by main().
