Definition in file wireless_uart.c.
#include <stdint.h>
#include <stdbool.h>
#include "config_uart.h"
#include "compiler.h"
#include "at86rf230_registermap.h"
#include "hal.h"
#include "tat.h"
#include "com.h"

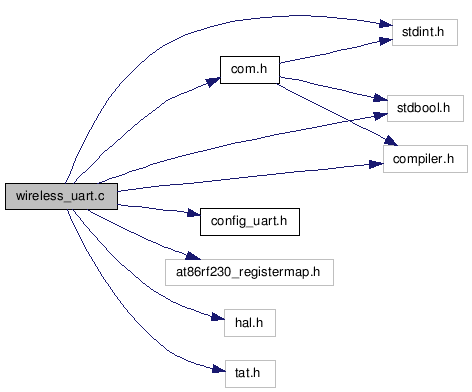

Include dependency graph for wireless_uart.c:
Go to the source code of this file.
Functions | |
| static void | avr_init (void) |
| This function configure the necessary IO modules on the AVR. | |
| void | main (void) |
| static void | rx_pool_init (void) |
| This function initialize the rx_pool. The rx_pool is in essence a FIFO. | |
| static void | trx_end_handler (uint32_t time_stamp) |
| This function is the TRX_END event handler that is called from the TRX isr if assigned. | |
| static bool | trx_init (void) |
| This function is used to initialize the TRX. | |
Variables | |
| static uint8_t | debug_data_received [] = "\r--->Rx:\r" |
| Debug Text. | |
| static uint8_t | debug_data_sent [] = "<---TX OK.\r\n" |
| Debug Text. | |
| static uint8_t | debug_fatal_error [] = "A fatal error. System must be reset.\r\n" |
| Debug Text. | |
| static uint8_t | debug_lqi [] = "LQI: " |
| Debug Text. | |
| static uint8_t | debug_pll_transition [] = "State transition failed\r\n" |
| Debug Text. | |
| static uint8_t | debug_rx_pool_overflow [] = "RX Buffer Overflow!\r\n" |
| Debug Text. | |
| static uint8_t | debug_transmission_failed [] = "TX Failed!\r\n" |
| Debug Text. | |
| static uint8_t | debug_transmission_length [] = "Typed Message too long!!\r\n" |
| Debug Text. | |
| static uint8_t | debug_type_message [] = "\r<---Type Message:\r\n" |
| Debug Text. | |
| static bool | rx_flag |
| Flag used to mask between the two possible TRX_END events. | |
| static hal_rx_frame_t | rx_pool [RX_POOL_SIZE] |
| Pool of hal_rx_frame_t's. | |
| static hal_rx_frame_t * | rx_pool_end |
| Pointer to end of pool. | |
| static hal_rx_frame_t * | rx_pool_head |
| Pointer to next hal_rx_frame_t it is possible to write. | |
| static uint8_t | rx_pool_items_free |
| Number of free items (hal_rx_frame_t) in the pool. | |
| static uint8_t | rx_pool_items_used |
| static bool | rx_pool_overflow_flag |
| Flag that is used to signal a pool overflow. | |
| static hal_rx_frame_t * | rx_pool_start |
| Pointer to start of pool. | |
| static hal_rx_frame_t * | rx_pool_tail |
| Pointer to next hal_rx_frame_t that can be read from the pool. | |
| static void avr_init | ( | void | ) | [static] |
This function configure the necessary IO modules on the AVR.
Definition at line 127 of file wireless_uart.c.
References BR_38400, and com_init().
Referenced by main().
Here is the call graph for this function:
| void main | ( | void | ) |
Definition at line 181 of file wireless_uart.c.
References avr_init(), com_get_number_of_received_bytes(), com_get_received_data(), com_reset_receiver(), COM_RX_BUFFER_SIZE, com_send_hex(), com_send_string(), debug_data_received, debug_data_sent, debug_fatal_error, debug_lqi, debug_pll_transition, debug_rx_pool_overflow, debug_transmission_failed, debug_transmission_length, debug_type_message, rx_flag, rx_pool_end, rx_pool_init(), rx_pool_items_free, rx_pool_items_used, rx_pool_overflow_flag, rx_pool_start, rx_pool_tail, and trx_init().
00181 { 00182 00183 static uint8_t length_of_received_data = 0; 00184 rx_flag = true; 00185 00186 rx_pool_init( ); 00187 avr_init( ); 00188 trx_init( ); 00189 00190 //Set system state to RX_ON 00191 if (tat_set_trx_state( RX_ON ) != TAT_SUCCESS) { 00192 com_send_string( debug_fatal_error, sizeof( debug_fatal_error ) ); 00193 } // end: if (tat_set_trx_state( RX_ON ) != TAT_SUCCESS) ... 00194 00195 sei( ); 00196 00197 //Give the user an indication that the system is ready. 00198 com_send_string( debug_type_message, sizeof( debug_type_message ) ); 00199 00200 /*Enter Normal Program Flow: 00201 - Check for newly received frames. Print them if something is received. 00202 - Notify on rx_pool overflow. 00203 - Try to send data on air interface, if something is received on UART/USB. 00204 - Notify if the typed message was too long. 00205 */ 00206 while (true) { 00207 00208 //Check if we have received something on the air interface. 00209 if (rx_pool_items_used != 0) { 00210 00211 //Handle wrapping of rx_pool. 00212 if (rx_pool_tail == rx_pool_end) { 00213 rx_pool_tail = rx_pool_start; 00214 } else { 00215 ++rx_pool_tail; 00216 } // end: if (rx_pool_tail == rx_pool_end) ... 00217 00218 //Turn interrupts off for a short while to protect when status 00219 //information about the rx_pool is updated. 00220 cli( ); 00221 00222 ++rx_pool_items_free; 00223 --rx_pool_items_used; 00224 00225 sei( ); 00226 00227 //Send the frame to the user: 00228 com_send_string( debug_data_received, sizeof( debug_data_received ) ); 00229 com_send_string( rx_pool_tail->data, ((rx_pool_tail->length) - 2 ) ); 00230 com_send_string( debug_lqi, sizeof( debug_lqi ) ); 00231 com_send_hex( rx_pool_tail->lqi ); 00232 com_send_string( debug_type_message, sizeof( debug_type_message ) ); 00233 } // end: if (rx_pool_items_used != 0) ... 00234 00235 //Check for rx_pool overflow. 00236 if (rx_pool_overflow_flag == true) { 00237 00238 cli(); 00239 rx_pool_init( ); 00240 com_send_string( debug_rx_pool_overflow, sizeof( debug_rx_pool_overflow ) ); 00241 sei(); 00242 } // end: if (rx_pool_overflow_flag == true) ... 00243 00244 //Check for new data on the serial interface. 00245 //Check if data is ready to be sent. 00246 length_of_received_data = com_get_number_of_received_bytes( ); 00247 00248 if (length_of_received_data == 1) { 00249 00250 //length_of_received_data == 1 indicates a buffer overflow. Received data too long. 00251 com_send_string( debug_transmission_length, sizeof( debug_transmission_length ) ); 00252 com_reset_receiver( ); 00253 } else { 00254 00255 if ((length_of_received_data >= 3) && (length_of_received_data <= COM_RX_BUFFER_SIZE)) { 00256 00257 //Change state to PLL_ON and send data if the state transition was successful. 00258 if (tat_set_trx_state( PLL_ON ) == TAT_SUCCESS) { 00259 00260 uint8_t *rx_frame = com_get_received_data( ); 00261 00262 rx_flag = false; // Set the flag false, so that the TRX_END event is not misinterpreted. 00263 00264 if (tat_send_data( length_of_received_data, rx_frame ) == TAT_SUCCESS) { 00265 com_send_string( debug_data_sent, sizeof( debug_data_sent ) ); 00266 } else { 00267 com_send_string( debug_transmission_failed, sizeof( debug_transmission_failed ) ); 00268 } // end: if (tat_send_data_with_retry( tx_frame_length, tx_frame, 1 ) ... 00269 00270 //Wait for the TRX FSM to go back to PLL_ON. 00271 while (tat_get_trx_state( ) != PLL_ON) {;} 00272 } else { 00273 com_send_string( debug_pll_transition, sizeof( debug_pll_transition ) ); 00274 } // end: if (tat_set_trx_state( PLL_ON ) == TAT_SUCCESS) ... 00275 00276 if (tat_set_trx_state( RX_ON ) != TAT_SUCCESS) { 00277 com_send_string( debug_fatal_error, sizeof( debug_fatal_error ) ); 00278 } // end: if (tat_set_trx_state( RX_ON ) != TAT_SUCCESS) ... 00279 00280 rx_flag = true; // Set the flag back again. Only used to protec the frame transmission. 00281 com_reset_receiver( ); 00282 com_send_string( debug_type_message, sizeof( debug_type_message ) ); 00283 } // end: 00284 } // end: if (length_of_received_data == 1) ... 00285 } // emd: while (true) ... 00286 }
Here is the call graph for this function:
| static void rx_pool_init | ( | void | ) | [static] |
This function initialize the rx_pool. The rx_pool is in essence a FIFO.
Definition at line 133 of file wireless_uart.c.
References rx_pool, rx_pool_end, rx_pool_head, rx_pool_items_free, rx_pool_items_used, rx_pool_overflow_flag, RX_POOL_SIZE, rx_pool_start, and rx_pool_tail.
Referenced by main().
00133 { 00134 00135 rx_pool_start = rx_pool; 00136 rx_pool_end = &rx_pool[ RX_POOL_SIZE - 1 ]; 00137 00138 rx_pool_head = rx_pool_start; 00139 rx_pool_tail = rx_pool_end; 00140 00141 rx_pool_items_free = RX_POOL_SIZE; 00142 rx_pool_items_used = 0; 00143 00144 rx_pool_overflow_flag = false; 00145 }
| static void trx_end_handler | ( | uint32_t | time_stamp | ) | [static] |
This function is the TRX_END event handler that is called from the TRX isr if assigned.
| [in] | time_stamp | Interrupt timestamp in IEEE 802.15.4 symbols. |
Definition at line 152 of file wireless_uart.c.
References rx_flag, rx_pool_end, rx_pool_head, rx_pool_items_free, rx_pool_items_used, rx_pool_overflow_flag, and rx_pool_start.
Referenced by trx_init().
00152 { 00153 00154 if (rx_flag == true) { 00155 00156 //Check if these is space left in the rx_pool. 00157 if (rx_pool_items_free == 0) { 00158 rx_pool_overflow_flag = true; 00159 } else { 00160 00161 //Space left, so upload the received frame. 00162 hal_frame_read( rx_pool_head ); 00163 00164 //Then check the CRC. Will not store frames with invalid CRC. 00165 if (rx_pool_head->crc == true) { 00166 00167 //Handle wrapping of rx_pool. 00168 if (rx_pool_head == rx_pool_end) { 00169 rx_pool_head = rx_pool_start; 00170 } else { 00171 ++rx_pool_head; 00172 } // end: if (rx_pool_head == rx_pool_end) ... 00173 00174 --rx_pool_items_free; 00175 ++rx_pool_items_used; 00176 } // end: if (rx_pool_head->crc == true) ... 00177 } // end: if (rx_pool_items_free == 0) ... 00178 } // end: if (rx_flag == true) ... 00179 }
| static bool trx_init | ( | void | ) | [static] |
This function is used to initialize the TRX.
| true | if the TRX was successfully configured. | |
| false | if the TRX was not configured properly. |
Definition at line 104 of file wireless_uart.c.
References OPERATING_CHANNEL, and trx_end_handler().
Referenced by main().
00104 { 00105 00106 static bool status; 00107 00108 if (tat_init( ) != TAT_SUCCESS) { 00109 status = false; 00110 } else if (tat_set_operating_channel( OPERATING_CHANNEL ) != TAT_SUCCESS) { 00111 status = false; 00112 } else if (tat_set_clock_speed( true, CLKM_DISABLED ) != TAT_SUCCESS) { 00113 status = false; 00114 } else{ 00115 00116 tat_use_auto_tx_crc( true ); //Automatic CRC must be enabled. 00117 hal_set_trx_end_event_handler( trx_end_handler ); // Event handler for TRX_END events. 00118 00119 status = true; 00120 } // end: if (tat_init( ) != TAT_SUCCESS) ... 00121 00122 return status; 00123 }
Here is the call graph for this function:
uint8_t debug_data_received[] = "\r--->Rx:\r" [static] |
uint8_t debug_data_sent[] = "<---TX OK.\r\n" [static] |
uint8_t debug_fatal_error[] = "A fatal error. System must be reset.\r\n" [static] |
uint8_t debug_lqi[] = "LQI: " [static] |
uint8_t debug_pll_transition[] = "State transition failed\r\n" [static] |
uint8_t debug_rx_pool_overflow[] = "RX Buffer Overflow!\r\n" [static] |
uint8_t debug_transmission_failed[] = "TX Failed!\r\n" [static] |
uint8_t debug_transmission_length[] = "Typed Message too long!!\r\n" [static] |
uint8_t debug_type_message[] = "\r<---Type Message:\r\n" [static] |
bool rx_flag [static] |
Flag used to mask between the two possible TRX_END events.
Definition at line 82 of file wireless_uart.c.
Referenced by main(), and trx_end_handler().
hal_rx_frame_t rx_pool[RX_POOL_SIZE] [static] |
Pool of hal_rx_frame_t's.
Definition at line 73 of file wireless_uart.c.
Referenced by rx_pool_init().
hal_rx_frame_t* rx_pool_end [static] |
Pointer to end of pool.
Definition at line 75 of file wireless_uart.c.
Referenced by main(), rx_pool_init(), and trx_end_handler().
hal_rx_frame_t* rx_pool_head [static] |
Pointer to next hal_rx_frame_t it is possible to write.
Definition at line 76 of file wireless_uart.c.
Referenced by rx_pool_init(), and trx_end_handler().
uint8_t rx_pool_items_free [static] |
Number of free items (hal_rx_frame_t) in the pool.
Definition at line 78 of file wireless_uart.c.
Referenced by main(), rx_pool_init(), and trx_end_handler().
uint8_t rx_pool_items_used [static] |
Definition at line 79 of file wireless_uart.c.
Referenced by main(), rx_pool_init(), and trx_end_handler().
bool rx_pool_overflow_flag [static] |
Flag that is used to signal a pool overflow.
Definition at line 80 of file wireless_uart.c.
Referenced by main(), rx_pool_init(), and trx_end_handler().
hal_rx_frame_t* rx_pool_start [static] |
Pointer to start of pool.
Definition at line 74 of file wireless_uart.c.
Referenced by main(), rx_pool_init(), and trx_end_handler().
hal_rx_frame_t* rx_pool_tail [static] |
Pointer to next hal_rx_frame_t that can be read from the pool.
Definition at line 77 of file wireless_uart.c.
Referenced by main(), and rx_pool_init().
