Team Status Report for 02/22/2025

Potential Risks and Risk Management
Most of our risks remain the same however, after our design review presentation, we realized that our DC motor would be under a certain level of stress, so to mitigate this, we are making sure to purchase one that is rated for purposes that are slightly more involved than ours. We are also ordering multiple to prevent any roadblocks later in the project.

Overall Design Changes
No significant changes have been made to our design since the recent change to our sorting mechanism. We did make slight changes to the mechanical parts picked while we finalized the parts to be ordered. Our design report will show the final draft.

Schedule
Currently, there are no major updates to our schedule; however, we have updated it to indicate our progress on ongoing tasks. Since we will be placing orders for parts early next week and anticipate a slight lead time for some of our components, our schedule, specifically the portion corresponding to the conveyor belt assembly, will need to be pushed back by half a week.

Schedule – Gantt Chart

Progress Update

After John finalized the CAD models for the conveyor belt and sorting mechanism, we collectively finalized the parts to be ordered for the conveyor belt, sorting mechanism, and object detection. We hope to submit the appropriate forms at the beginning of the week.

Erin’s Status Report for February 22nd, 2025

This week, I gave my design review presentation to section E. By the time it came around, we figured out how our different subsystems were going to interact with each other. Later in the week, I met up with my team to finalize the BOM for our project. We also figured out how we were going to acquire the Arduino; we will be placing the order for the servos from goBILDA early next week. My goal before Spring Break is to experiment with the Servo Library for Arduino with hobby servos that I have lying around, and once the servos for the project arrive, I’ll work on driving it for our purposes.

Mohammed’s Status Report for February 22nd, 2025

This week I worked on finalizing the parts required for the project alongside the rest of the team. I particularly focused on the embedded / electronic parts in addition to the vision component. Past that, I have been working on the data-loader that compiles the datasets for fine-tuning the model. The fine-tuning itself will happen this week.

John’s Status Report for February 22nd, 2025

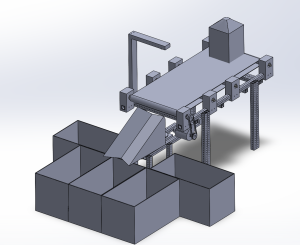

This week, I finished up our final draft for our conveyor design on Solidworks shown below. I also worked with the team to organize our parts ordering, so our orders will be submitted next week during Tuesday. Once the parts arrive, we will need to quickly begin assembling and troubleshooting our mechanical design. Considering parts may take a little longer to arrive than expected, our schedule may have to be pushed back by half a week.

Erin’s Status Report for February 15th, 2025

This week, I met with my team to prepare for our upcoming design review presentation. Our goal was to fully think through the separate design aspects of the project, and hash out details. Because we changed our sorting mechanism (described in further detail in the Team Status Report), we had to rethink all the different parts we would require to get the system to function properly. I contributed by creating an in-depth block diagram that highlights all the system interactions. We plan on adding further detail before our design presentation; However, creating the diagram helped us better understand how we wanted our system to function. We’re still on track with the schedule proposed in the Gantt chart. My goals for the following week are to place some integral part orders (Servo, Arduino, Camera) and to also start experimenting with servo libraries on the Arduino to figure out how to properly drive a servo rated for a larger than typical load.




Team Status Report for 02/15/2025

Potential Risks and Risk Management
The most significant risks we anticipate for this project are the same as last week. In a nutshell, servo load rating, and mechanical failure are the biggest risks. We do have risk management mechanisms in place, and these were hashed out in the previous team status report.

Overall Design Changes
We made a change to our sorting mechanism. Previously, we chose to have mechanical sweepers that push materials (glass, paper, plastic, metal) into their respective bins. However, after John started designing the conveyor belt, we found this mechanism to be slightly less feasible. Instead, we decided to pivot to using a swivel mechanism wherein all objects fall off the conveyor belt’s end and are then sorted. The sorting is done with a custom ramp that rotates and drops each object off in its appropriate bin. To accommodate the time it takes for the swivel to transport the objects, we will be modifying the object detection sequence. The design changes will be elaborated on in our design report.

Schedule
Currently, there are no major updates to our schedule, however, we have updated it to indicate our progress on ongoing tasks.

Schedule – Gantt Chart

 Progress Update
As mentioned in Mohammed’s status report, we experimented with a few pre-trained models and settled to use a YOLOv5 implementation. Fine-tuning will be necessary due to the model recognizing trash as recyclable material in addition to miscategorizing other recyclable waste.  John’s status report indicates the substantial completion of a majority of our mechanical design, and it will soon be ready for manual assembly.

Applications of Solution
Part A (Written by Erin)
Our product is tailored to ultimately impact the welfare of society through efficient recycling mechanisms. Our research has shown us that a lot of times, batches of recycled items are contaminated with debris causing these items to no longer be eligible for recycling purposes. Through our solution of automated trash sorting, we’ll be able to reduce the amount of recycling that is rendered ineligible and eventually contribute towards cleaner living environments for all. This result is possible due to less trash ending up in landfills, and subsequently fewer contaminants in the air. Good recycling mechanisms will also aid in maintaining resource availability for future generations. Our product is designed to be efficient, and scalable, and we believe that its incorporation into material recovery facilities will help streamline and improve the recycling conundrum that is ever present in our world.

Part B (Written by Mohammed)
A particular societal factor our solution targets is ignorance to recycling requirements and regulations. In many places and cultures, what constitutes recyclable waste is not immediately obvious, which leads to people inappropriately categorizing their trash. Our project reduces the reliance on individual awareness by automatically and efficiently sorting the miscategorized trash. Furthermore, we intend on solving the potential challenge of product accessibility by designing an affordable and scalable system that can be accessed by both the public and private sector. That way, our solution can be deployed in not only wealthy governments and sorting facilities but also relatively poorer ones.

Part C (Written by John)
The economics of our project are kept in check with our requirement of a low cost to prototyping our system. The product will also consist of a lot of off-the-shelf parts so it will be more feasible to connect with suppliers to reasonably assemble our project. The few parts that are custom-made are only custom to lower costs in our prototyping phase, but they can be reasonably fitted with other off-the-shelf parts to ease production. Since this project is meant to be used by larger bodies such as companies and government entities, which are typically more regulated, it will not hold the concerns of wide-spread distribution with other products that would be marketed to individuals and civilian consumers. The use case of the project designates it to be stationary throughout its usage and life cycle, so it would be feasible to distribute and deploy the product to specific facilities in a controlled manner. The product will solely contribute towards the goals of the facilities it is owned by, so there are likely little to no consequences of its use long-term.

John’s Status Report for February 15th, 2025

At the beginning of the week, we have made a substantial design change which is that instead of individual mechanical sweepers, we will instead simply have a single sorter at the end of our conveyor belt that will guide fallen objects into their designated categories.

This week, we made a lot of progress in the mechanical aspects by detailing the design in Solidworks. This solidifies a lot of our ideas on how we will mechanically design our system and gives us a concrete estimate to a lot of the expected materials we will need. We have also designed a lot of the custom parts that we will need manufacture in our project. For this next week, I will quickly need to finish the remaining design and begin ordering parts for manufacturing and assembling.

Mohammed’s Status Report for February 15th, 2025

Aside from working on next week’s presentation, I primarily experimented with different pre-trained models that can be utilized for the project. The two prominent ones were a YOLOv5 model and a vision transformer, though both were trained on similar datasets. Both models seemed to struggle a bit with trash detection as well as false positives for recyclable material. Fine-tuning the models will likely help with that. The fine-tuning data will likely consist of the dataset that the models were trained. We will also use the Trash Annotations in Context (TACO) dataset which consists of a large image collection of labeled trash and recyclable objects, where we will have to condense the latter to the categories we are using for the project (trash, paper, metal, glass, and plastic).

Attached is an image of the YOLOv5 model’s inference result on an image I captured. The aforementioned problems can be seen in the image. Regardless, we will be sticking with a YOLO model as it is easier to fine-tune and can better visualize its predictions.

John’s Status Report for February 8th, 2025

Personal Accomplishments:

I installed Solidworks and researched typical conveyor belt designs. I have begun drafts of the mechanical designs on Solidworks. I communicated with my group a potential design change to change the form factor of our servo actuators to come in from the side and guide the material into its proper bin instead of directly knocking it. However this may come at the cost of speed.

Schedule:

We are currently on track for the mechanical design as I finish up the draft within this next week.

Deliverables:

As I continue designing, the group and I will eventually figure out which (mechanical sweeper) design will fit our requirements the best. I will also need to finish our first drafts and begin prototyping components. We will also need to finish our list of needed materials which is largely reliant on the designs of our mechanical components.

Team Status Report for 08/02/2025

Potential Risks and Risk Management

The most significant risks that we anticipate for this project are:

Servo Load Rating
In our project proposal, we indicated that we expect our system to be able to accurately classify 25’’ diameter, 10-pound objects. Given these conditions, we are uncertain if simple servos will be able to handle this load. In addition to this, timing synchronization will be pivotal for our product to work as expected. To address these risks, we have identified possible alternatives.

  • Use a servo rated for higher loads (7kg, 25kg, etc.)
  • Implement an additional stabilizer for servo actuation in the conveyor belt design

Mechanical Failure
The conveyor belt breaks or stalls, thus increasing the latency of the system. To address these issues, we have outlined strict prototyping requirements for our initial stages.

  • Stress Test System Design
    • Place 6 objects of a maximum of 10 pounds onto the belt
    • Allow the conveyor system to run at 0.68mph (based on proposal) and check functionality

Overall Design Changes
No significant changes were made to our design. This may change as we solidify our system architecture. We have upcoming goals of completing the CAD Model of the conveyor belt by 09/02/2025, and the entire system design architecture by 11/02/2025.


Schedule
Currently, there are no major updates to our schedule, however, we have updated it to indicate our progress on ongoing tasks.

Schedule – Gantt Chart

 Progress Update
With a spare NVIDIA Jetson Nano, our team was able to boot up the Jetson successfully. We ran into some issues initially with regard to the system getting overloaded every time we plugged in a USB, however, we were able to quickly get past this by using a 5V 3+A power brick. We were also able to connect the Jetson to WiFi using this Spark Fun guide. For our object detection mechanism, we decided that we would be using a YOLO model, and so we decided to test whether the Jetson could successfully launch an existing program.

Our Jetson Nano successfully running a YOLO Model

In addition to this, we also worked on our parts list, cross-listing items that we needed with the CMU Inventory, and also considering tradeoffs with components that are currently in the inventory vs. other unlisted suppliers.
